Arlington's Low Profile in Box for Flat Surface, Retrofit Construction is a One-Piece, recessed electrical box with weatherproof-in-use cover for flat surfaces in existing construction. The cover and base are non-metallic and Accepts most single gang wiring devices.

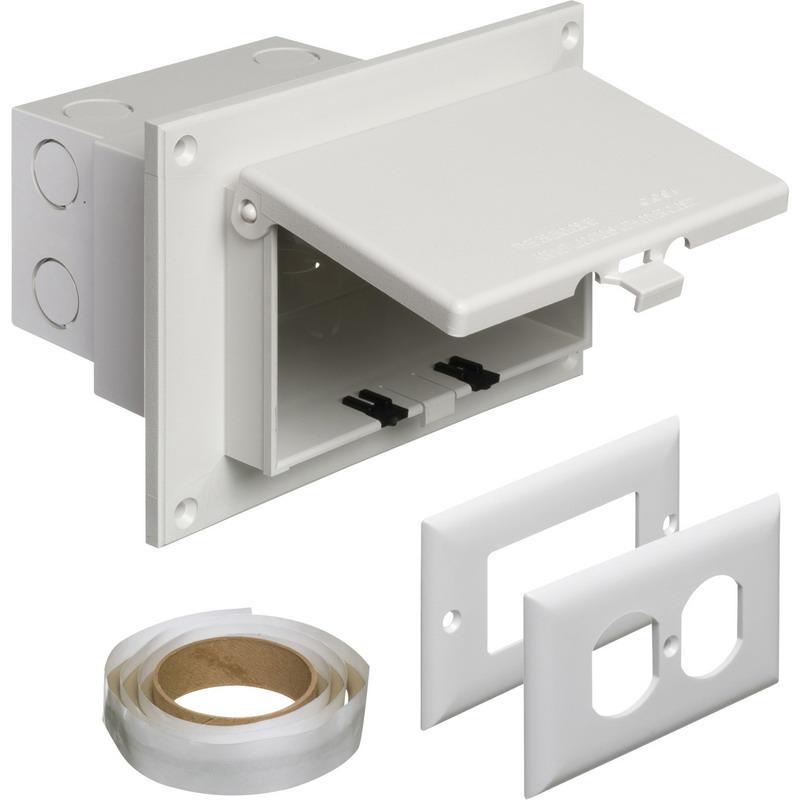

This rectangle box measuring 7.186-Inch x 4.934-Inch x 5.16-Inch has the capacity of 22-Cubic-Inch. It comes with installed bug plugs, one standard duplex, one standard FGCI faceplate, one set installation screws, one NM cable connector and one roll of caulk for proper installation. This box is ideal for flat surface retrofit construction. It has a NEMA 3R rating for safety. The box is UL listed, CSA certified and NEC compliant.

The in box's one-piece assembly replaces the installation of an electrical box and bubble cover assembly
DBVR1W-1 Installs in the wall, so less of it shows outside
The retrofit inbox can be used on plywood, T-111, and other flat surfaces
No gaskets are required and the cover is removable for easier device installation

===

Spec Sheet

Manufacturer Spec Sheet

Instructional Video:

Arlington Low Profile In Box For Flat Surface Retrofit Construction One Piece 22 cu in. DBHR1W White
