[shortdesc]

Rack Mount Size	Two Rack Units (3U)
Faceplate Material	Aluminium
Steel Thickness	2mm

[/shortdesc]

PRODUCT DESCRIPTION

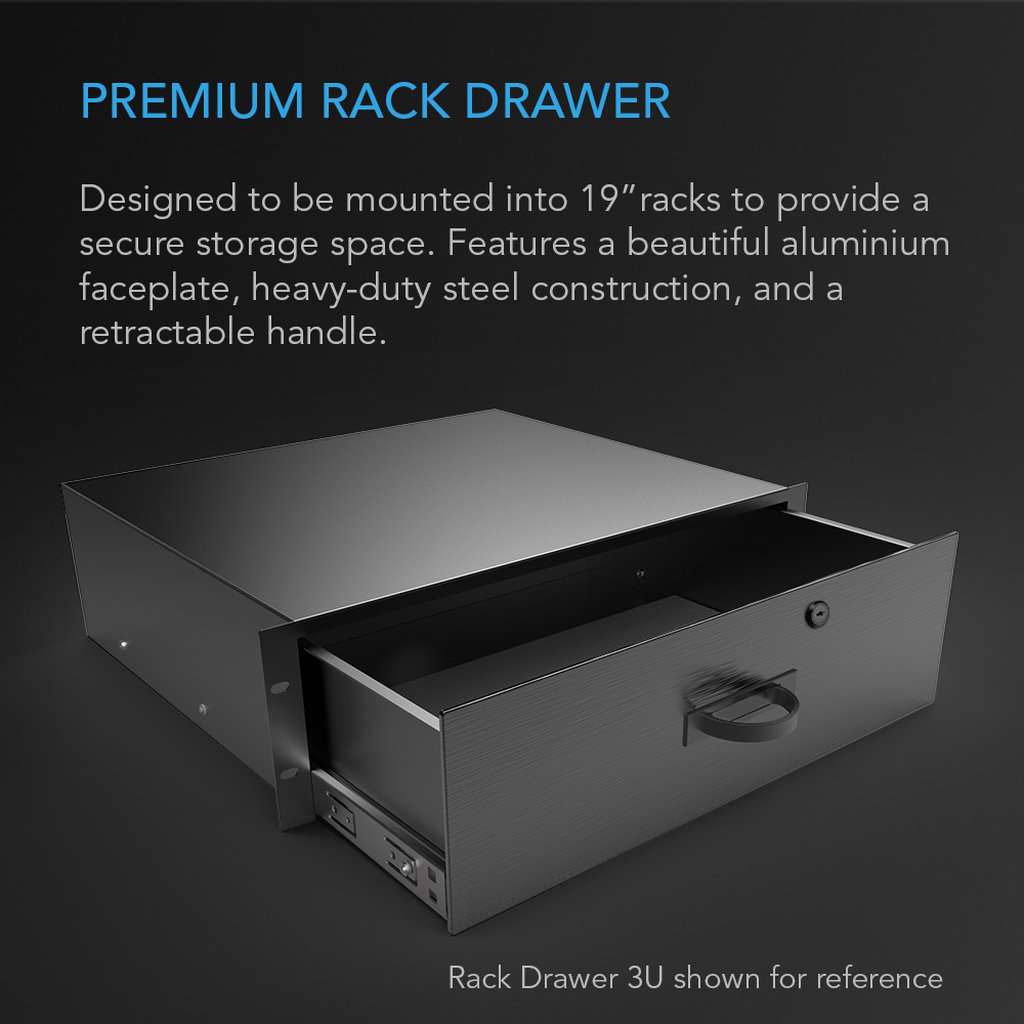

The AC Infinity aluminum rack mount drawer is designed to be mounted into standard 19-inch racks to provide storage space. The drawer can securely hold various rack equipment such as cables, headphones, tools, manuals, and microphones. Features a black anodized aluminum faceplate. The remaining sides are fully enclosed using heavy-duty 2mm thick cold-rolled steel with a powder coat finish, and a cable passthrough slot in the rear. This rack drawer takes 3U of rack space and includes a mat and a 10-32 rack mounting screw set. Includes optional lock and keys for security use.

PREMIUM BUILD

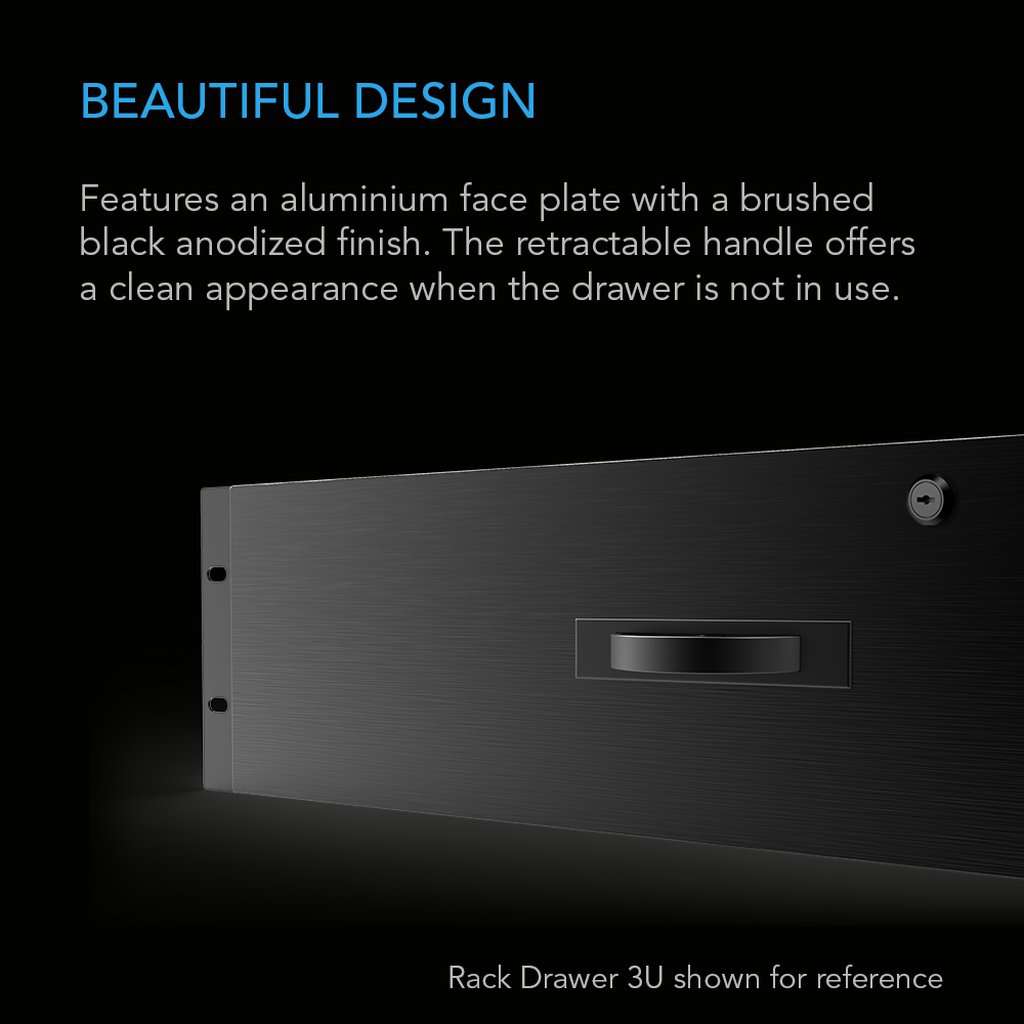

The aluminum faceplate is constructed from a solid block of high-grade alloy aluminum at 3mm thickness, then finished with a brushed black appearance. The panel is then CNC-machined, rounding each corner and chamfering each edge for a high-end look. The handle is designed to be concealed when not in use for a clean appearance and can be retracted when you need to pull open the drawer. This design makes it the perfect match for high-end audio/video and home theater racks.

Features:

Designed to be mounted into any standard 19-inch rack to provide a secure storage space.
Features an aluminum faceplate, with an anodized brushed finish and CNC-machined detailing.

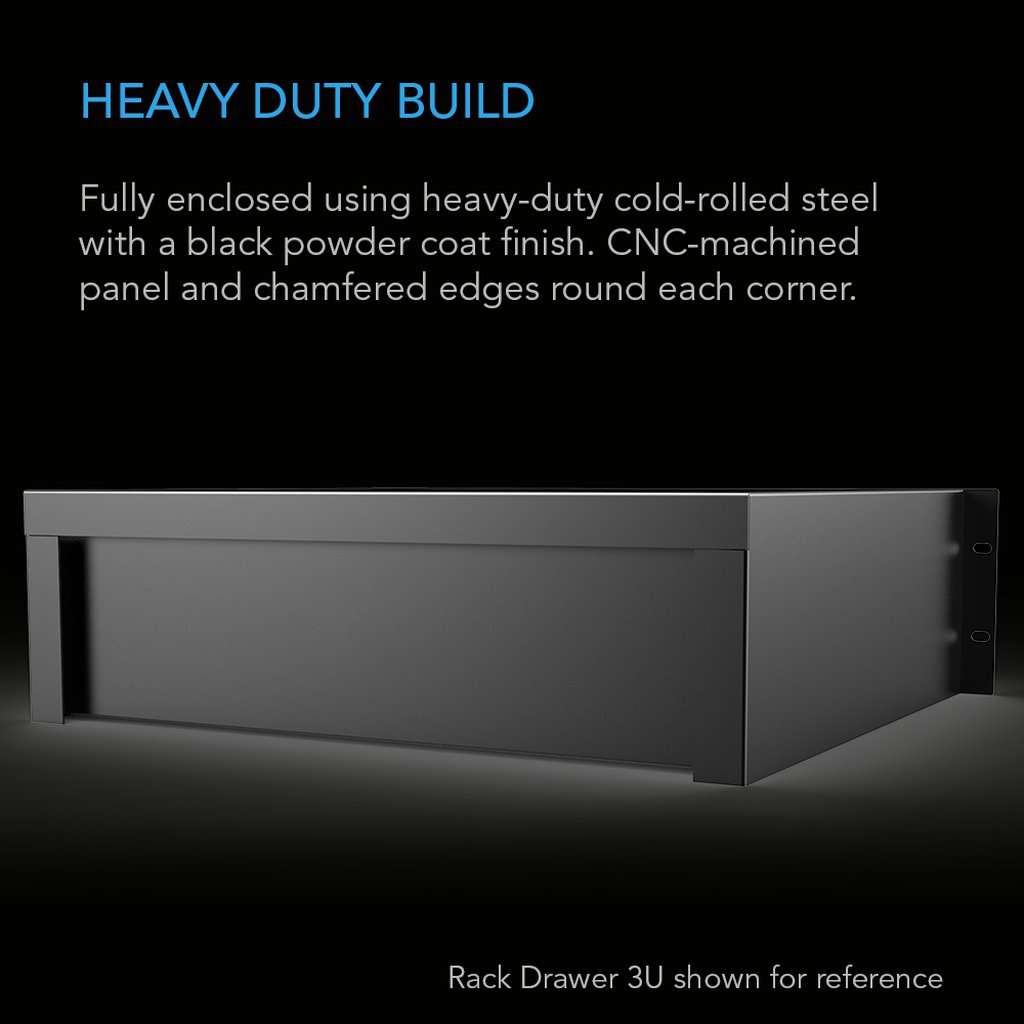

Fully enclosed using heavy-duty 2mm cold-rolled steel with chamfered edges for rounded corners.
Retractable drawer handle is concealed when not in-use for a clean and professional appearance.
Takes up 3U of space. Includes mat, 10-32 screw set, lock, and keys.

===

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	Rack Drawer 3U
Product Model	AC-RDA3
UPC Code	854759004907

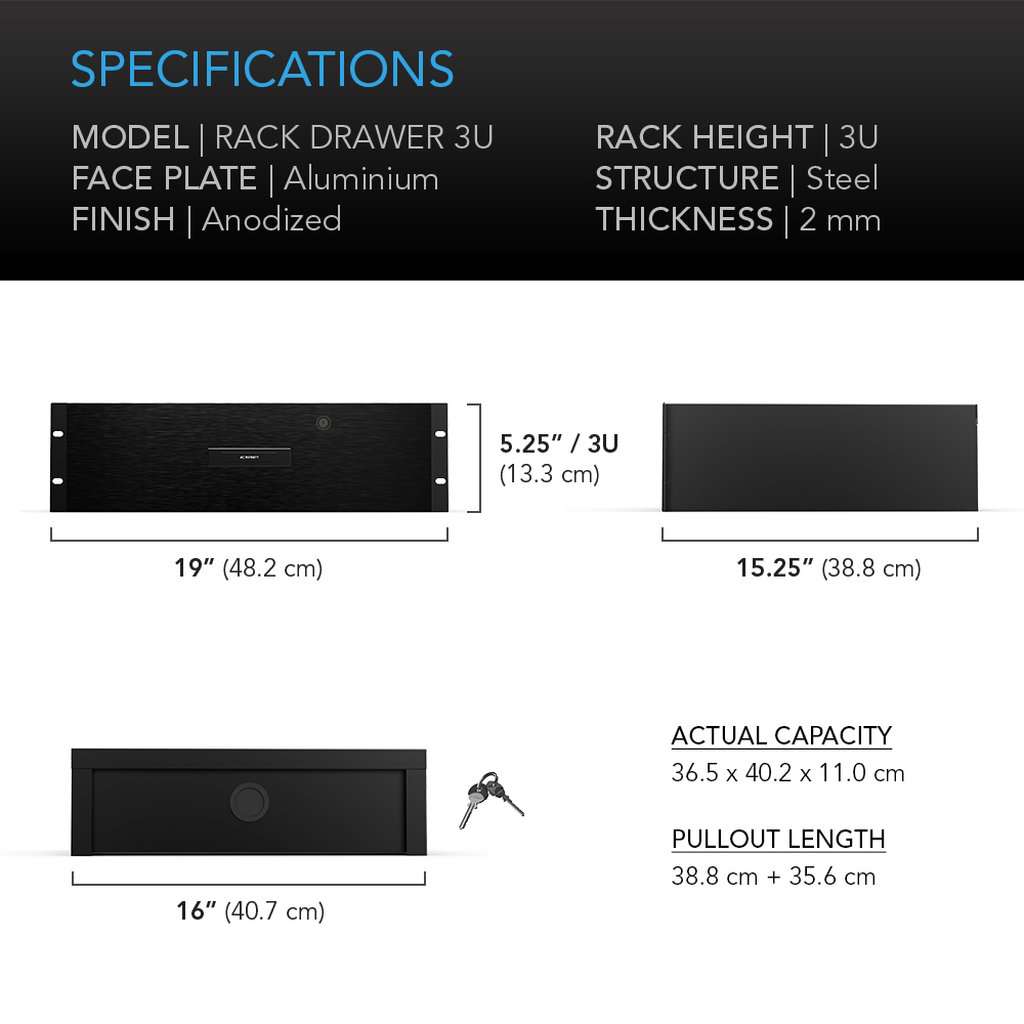

Product and Mounting Dimensions
Total Dimensions	15.25 x 19 x 5.25 in. (38.8 x 48.2 x 13.3 cm)
Rack Mount Size	Two Rack Units (3U)
Screw Hole Size	Ø .24 x 0.35 in. (Ø 6.1 x 9.0 mm) Obround
Hole to Hole Distance	18.2 x 3.0 in. (46.4 x 7.7 cm)
Capacity	36.5 x 40.2 x 11.0 cm
Pull Out Length	38.8 cm + 35.6 cm
Product Performance and Technical Specs
Faceplate Material	Aluminium
Faceplate Finish	Anodized Black with Brush
Structure	Cold Rolled Steel
Structure Finish	Black Powder Coat Paint
Steel Thickness	2mm
Drawer Handle	Retractable Rotating

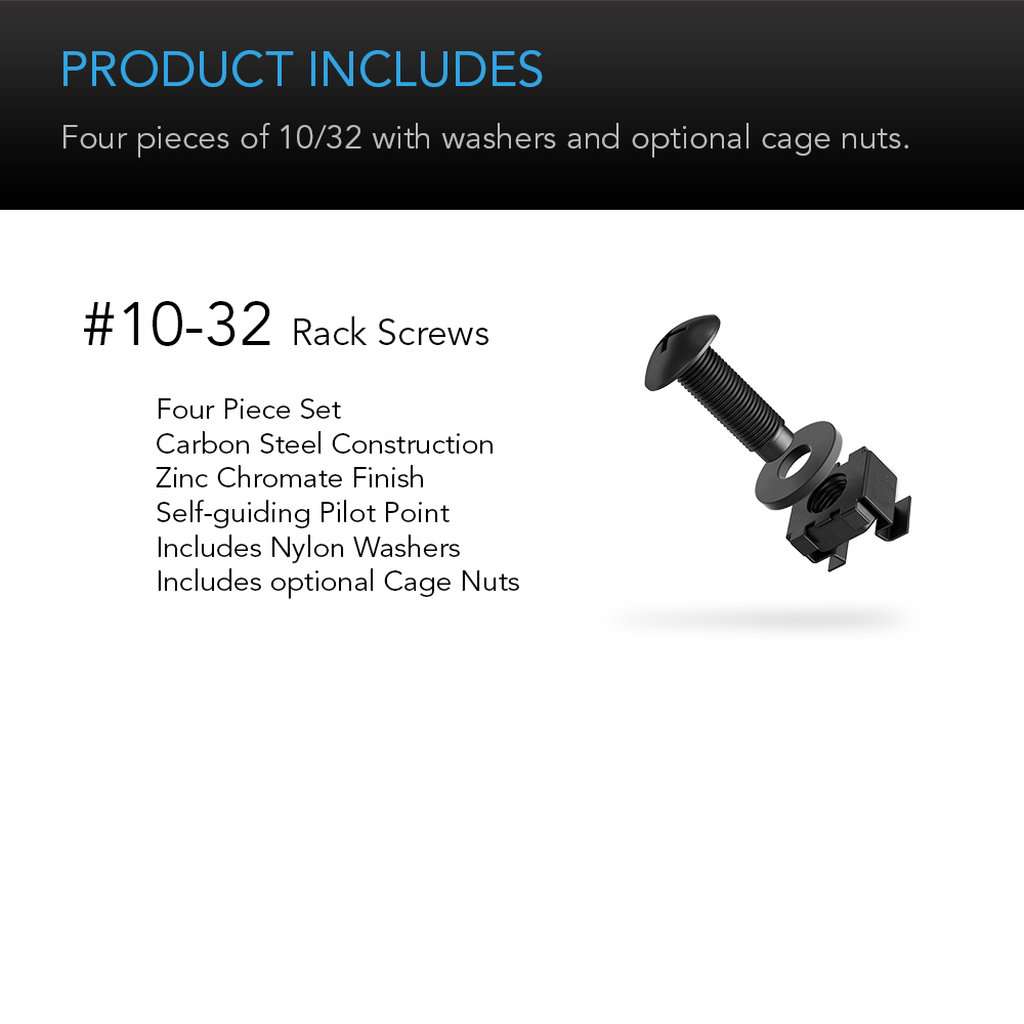

Screws Sets Included	Four Piece #10-32 Rack Screws plus Washers and Cage Nuts
Drawer Mat Included	Yes
Rear Cable Grommet Included	Yes
Keylock Included	No Key and Lock

AC Infinity - Heavy-Duty Rack Drawer With Aluminium Faceplate, 3U
