[shortdesc]

Fan Size	10 in.
Total Airflow	631 CFM
Total Noise	67 dBA

[/shortdesc]

fan shutter louver, cooling fan shutters, garage shutter fan, garage exhaust fan with shutter

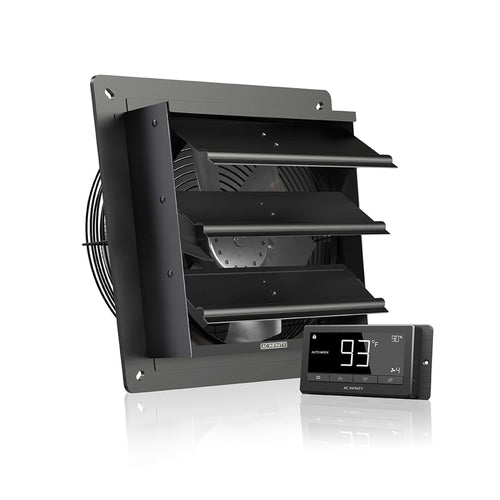

A high-airflow exhaust fan designed to cool and ventilate greenhouses, garages, attics, workshops, and sheds. The system can automatically eliminate heat, moisture, odor, and dust from enclosures, rooms, and buildings. Features an LCD display with remote smart temperature and humidity sensors, as well as customizable fan speeds. Innovative EC-motor with PWM-control maximizes airflow while reducing energy consumption and noise levels. Heavy-duty build features aluminum blades, steel wire guards, and galvanized steel shutters. Includes everything needed to mount the fan unit and power it through an outlet.

The controller included with each unit features active temperature and humidity monitoring. Fan speeds can be programmed to automatically adjust to high and low temperatures and humidity. The program can be manually set to run continuously or on a timer at custom speeds. Also features alarm warnings, fan failure alerts, eco-mode, and backup memory. Included 12-foot corded sensor probe plugs into the controller to provide temperature and humidity readings. The controller can control up to two AIRLIFT series fans.

Features galvanized steel shutters that are weather and corrosion resistant, and automatically closes when not in use. The blades and impeller are constructed of lightweight aluminum, weight-balanced to reduce vibrations. Utilizing an innovative EC motor that is controlled electronically using PWM (Pulse Width Modulation), the fans can maximize airflow while reducing noise and power consumption. The fully-enclosed motor is also permanently lubricated and houses dual-ball bearings that are rated at 67,000 hours and allow this fan system to be mounted horizontally or vertically. The unit is IP-44 rated to be highly resistant to dust and liquids and performs well even in harsh environments.

Features:

A high-airflow exhaust fan designed to ventilate out heat, moisture, odor, and dust from various spaces.
Programmable controller with corded probe can adjust fan speeds in response to temperatures and humidity.
Innovative EC-motor with PWM-control maximizes airflow while reducing energy consumption and noise levels.
Features galvanized-steel shutters, aluminum blades, and IP-44 rated to be highly resistant to liquid and dust.
Fan Size: 10” | Dimensions: 13.0 x 13.0 x 5.9 in. | Airflow: 631 CFM | Noise: 67 dBA | Bearings: Dual Ball

===

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	AIRLIFT T10
Product Model	AC-ALT10
UPC Code	819137020900
Product and Mounting Dimensions - Fan Unit
Total Dimensions	13.0 x 13.0 x 5.9 in (33.0 x 33.0 x 15.0 cm)
Frontside Enclosure Dimensions	10.62 x 10.62 in. x 2.20 in. (27.0 x 27.0 cm x 5.6 cm)
Required Mounting Hole	10.78 x 10.78 in (27.4 x 27.4 cm)
Hole to Hole Distance	11.41 x 11.41 in (29.0 x 29.0 cm)
Screw Hole Size	Ø 0.27 in (Ø 0.7 cm)
Cord Length to Controller	240 in (20 feet)
Product and Mounting Dimensions - Controller
Total Dimensions	5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
Hole to Hole Distance	4.71 x 2.64 in. (12.0 x 6.7 cm)
Screw Hole Size	Ø 0.119 in (Ø 0.3 cm)
Display Size	3.5 x 1.4 in. (9 x 3.5 cm)
Cord Length to Plug	96 in (8 feet)
Sensor Probe Length	144 in. (12 feet)
Product Performance and Technical Specs
Total Airflow	631 CFM
Total Noise	67 dBA
Static Pressure	96 Pa
Operating Voltage	100-240V AC
Power	50W
Current	0.75A
Operating Humidity	35 to 85% RH
Operating Temperature	0 to 158°F
Fan Bearings	Dual Ball
Mounting Positions	Horizontal or Vertical
L10 Life Expectancy	67,000 Hours
Product Manual
Product Manual	PDF
